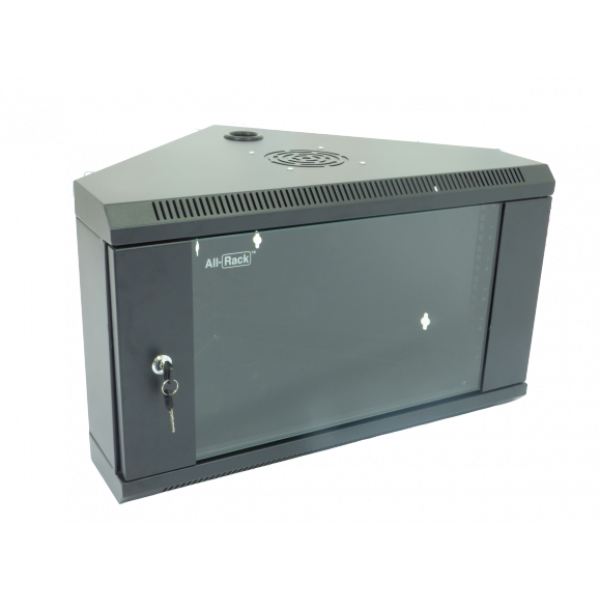

6U Triangular / Corner cabinet 430MM Depth

CABINET DIMENSION

Depth : 430MM

Width : 600MM

Height : 351MM

Net Weight : 10KG

Download Brochure

This is one of All-Racks very unique products. When you have an unused corner that is just asking to be filled, well this is your answer.

Currently there is only one available in 6U size , 600mm wide and 430mm from the front of the comms rack to the rear apex.

This comms rack is ideal for front mounting products such as patch panels, PDU’s , blank panels, Cable tidy, Brush panels etc. Due to the nature of this product, which is designed to fit snugly in a corner the depth is the limitation.

Unlike a standard wall mounted rack which is fixed to the wall at the rear, this Triangular data cabinet must be fixed to a wall on both sides. If the corner walls are such that they cannot both support the wall mounted data cabinet then It can also be placed on a work surface in the corner.

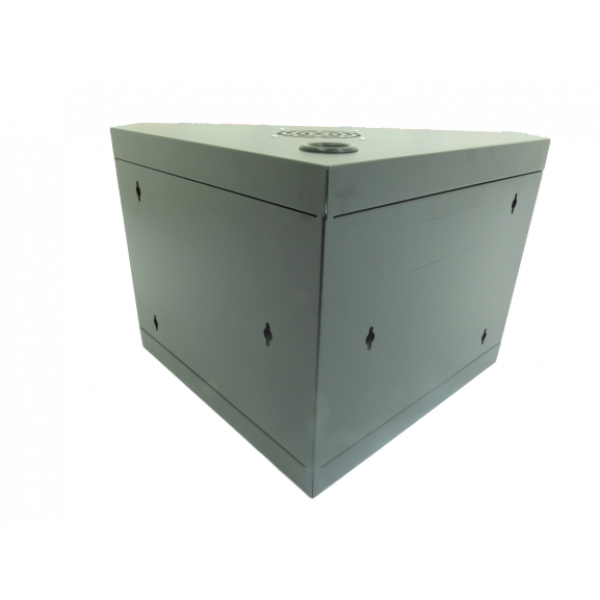

As you would expect from All-Rack the rack has a fan vent which allows an individual fan to be fixed for cooling. There is also a circular cable entry on the roof at the rear of the apex. Plus 2 x knock out points on both the side walls thus giving you several cable entry options. As well as the All-Rack signature “U” numbers screen printed on the front mounting profiles. Fixing hardware are also supplied so you are ready to go as soon as you receive this amazingly unique comms rack.

Available as pre built only.

Technical Specification

Loading Capacity: __KG

Doors: 180 degree opening angle and can be mounted on left & right hand side with simple spring latch

Security: Lockable Glass Door

Material: 1.2mm mild steel construction, youghened glass panel in steel framework door

Doors: Lockable, removable glazed front door. Lockable and removable steel side panels

Ventilation:  The roof has a cutout for 1 fan unit

Cable Entry: Cable access points on the lid

Colour: RAL9005
